Infrastructure

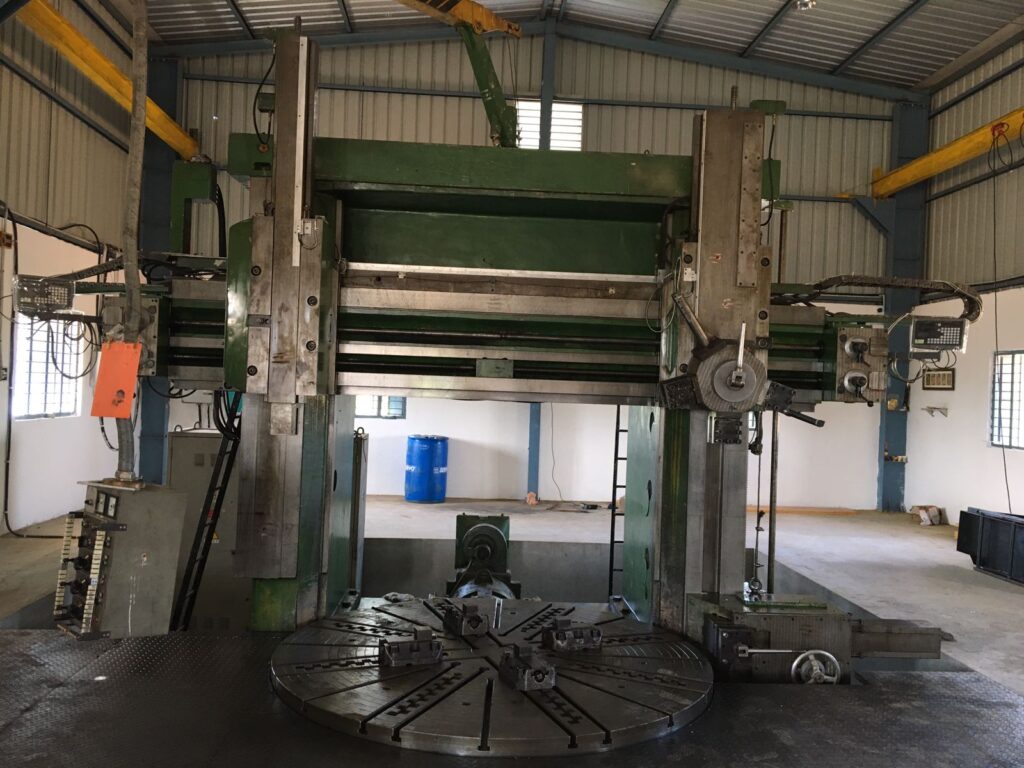

Vertical Turning Lathe (VTL) - DRO Incorporated

MAKE : TITAN

SPECIFICATIONS
Chuck Diameter	2500 MM
Swing Diameter	2700 MM
Height	2000 MM
Maximum weight of workpiece	10000 KG

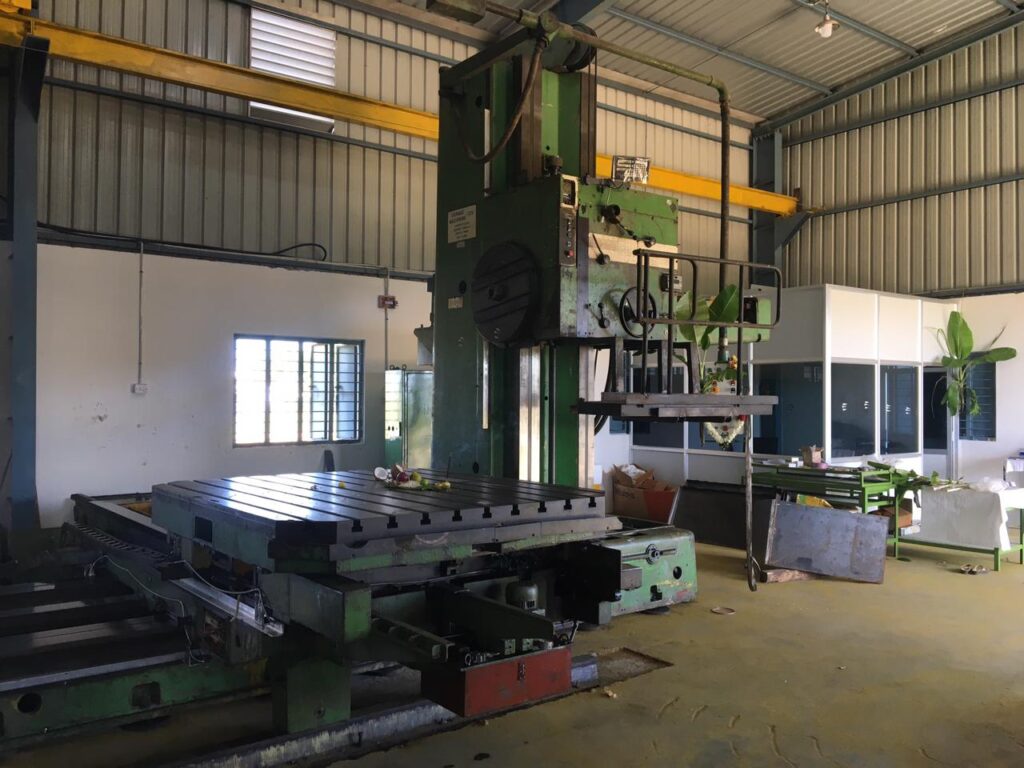

Horizontal Boring Machine (HBM) - DRO Incorporated

MAKE : WMW-UNION

Specifications
Spindle Diameter	125MM
X Axis Length	3000 MM
Y Axis Height	2500 MM
Z Axis Length	3000 MM
W Axis Length	1000 MM
Table Size	2000MMx1800 MM
Maximum weight of workpiece	7000 KG

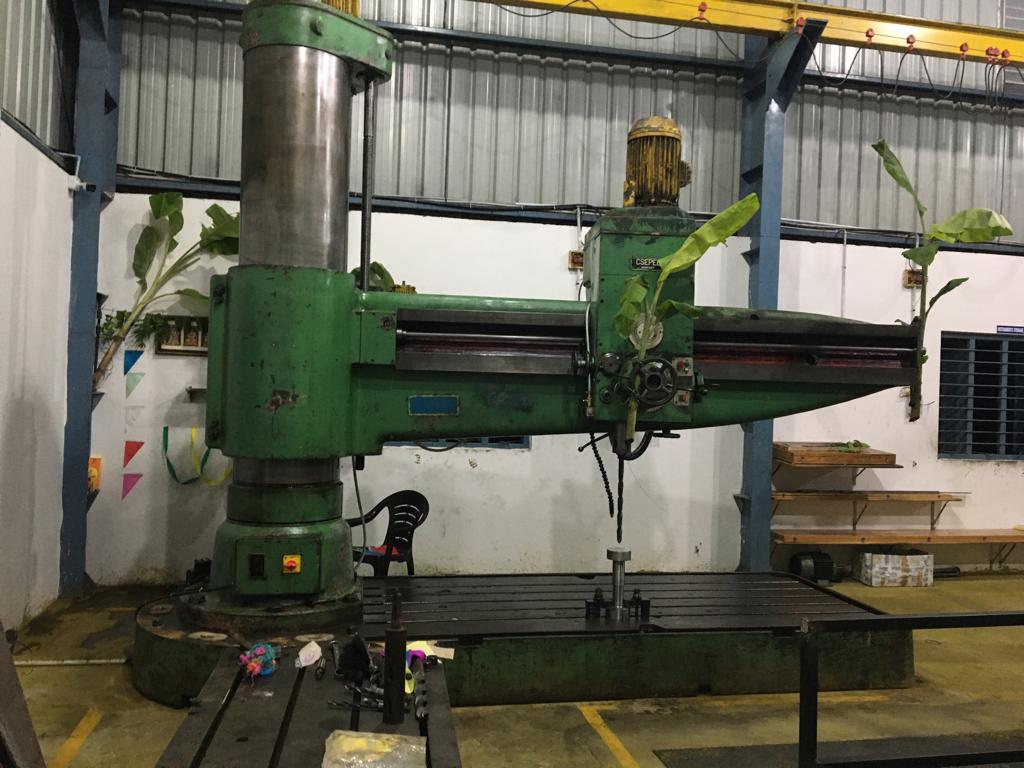

Radial Drilling Machine (RDM)

MAKE : CSEPEL

Specifications
Arm Length	3000MM
Spindle Size	100 MM
Column Height	1300 MM
Spindle Travel	450 MM

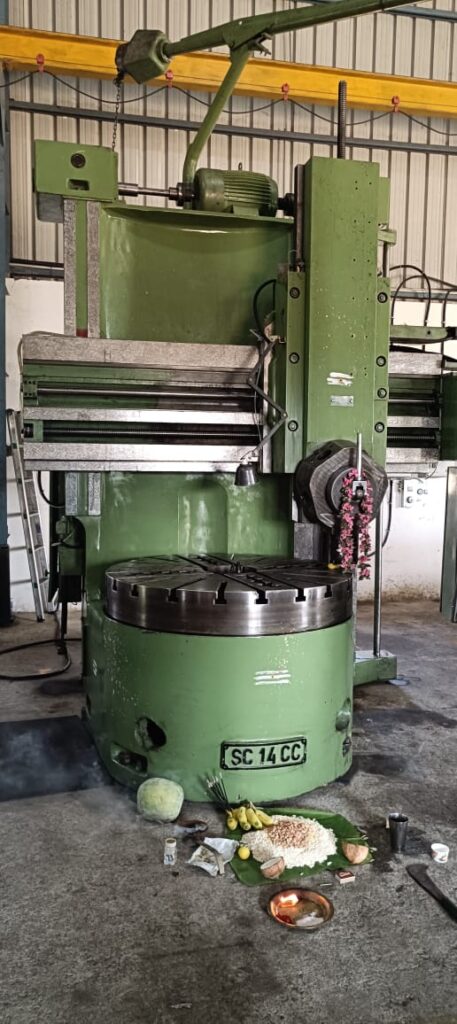

Vertical Turning Lathe (VTL)-DRO Incorporated

MAKE : TITAN

Specifications
Chuck Diameter	1200 MM
Swing Diameter	1400 MM
Height	1050 MM
Maximum weight of workspace	3000 KG

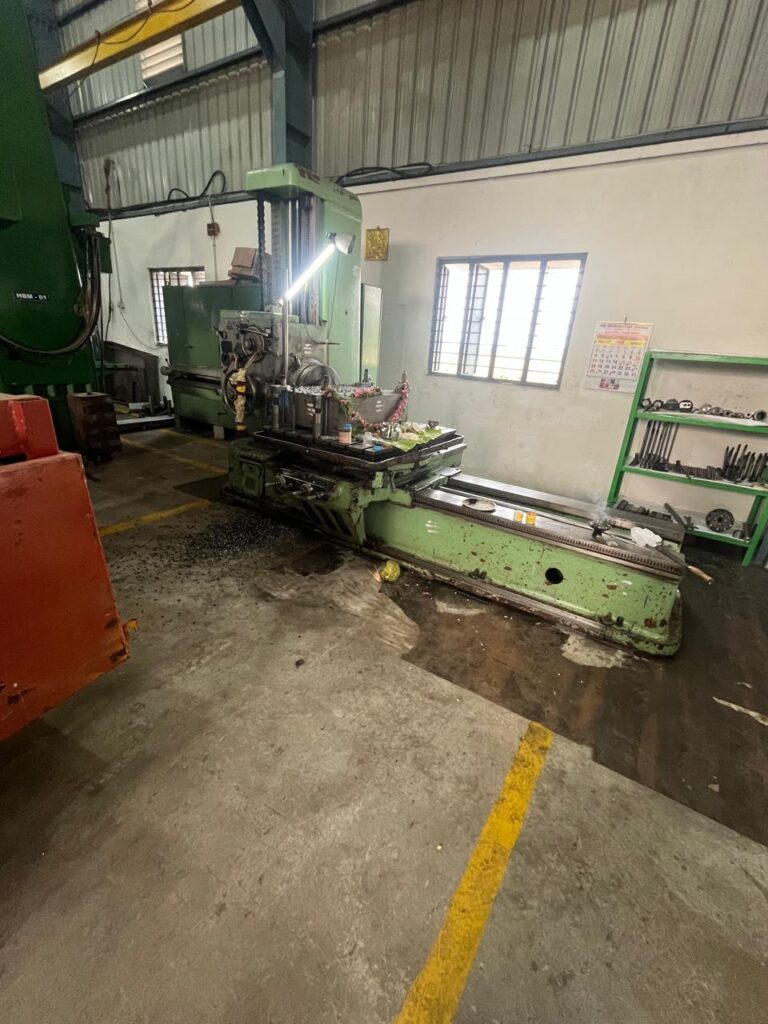

Horizontal Boring Machine(HBM)-DRO INCORPORATED

MAKE : TOS-VARNSDORF

Specifications
Spindle Diameter	80 mm
X Axis Length	1200 mm
Y Axis Length	900 mm
Z Axis Length	1200 mm
W Axis Length	500 mm
Table Size	1100x900 mm
Maximum Weight Of Workpiece	2000 KG

MAJOR LIST OF INSTRUMENTS

1	Instrument Name	Range
2	Vernier Caliper	0-3000
3	Vernier Caliper	0-1500
4	Vernier Caliper	0-600
5	Vernier Caliper	0-300
6	Vernier Caliper	0-150
7	Vernier Caliper-DIGITAL	0-300
8	Depth Vernier with extra Nip	0-300
9	Depth Vernier with extra Nip	0-600
10	Hook Vernier	0-600
11	RTJ Vernier	0-300
12	Outside Micrometer	0-150
13	Outside Micrometer	150-300
14	Outside Micrometer	300-400
15	Outside Micrometer	400-500
16	Outside Micrometer	500-600
17	Inside Micrometer-Stem type	50-1000
18	Inside Micrometer-Stem type	0-500
19	Bore Gauge	18-35
20	Bore Gauge	35-60
21	Bore Gauge	50-150
22	Bore Gauge	160-250
23	Height Gauge	0-1000
24	Inside Caliper	0-500
25	Inside Caliper	0-1000
26	Outside Caliper	0-500
27	Outside Caliper	0-1000

OTHER FACILITIES AVAILABLE
